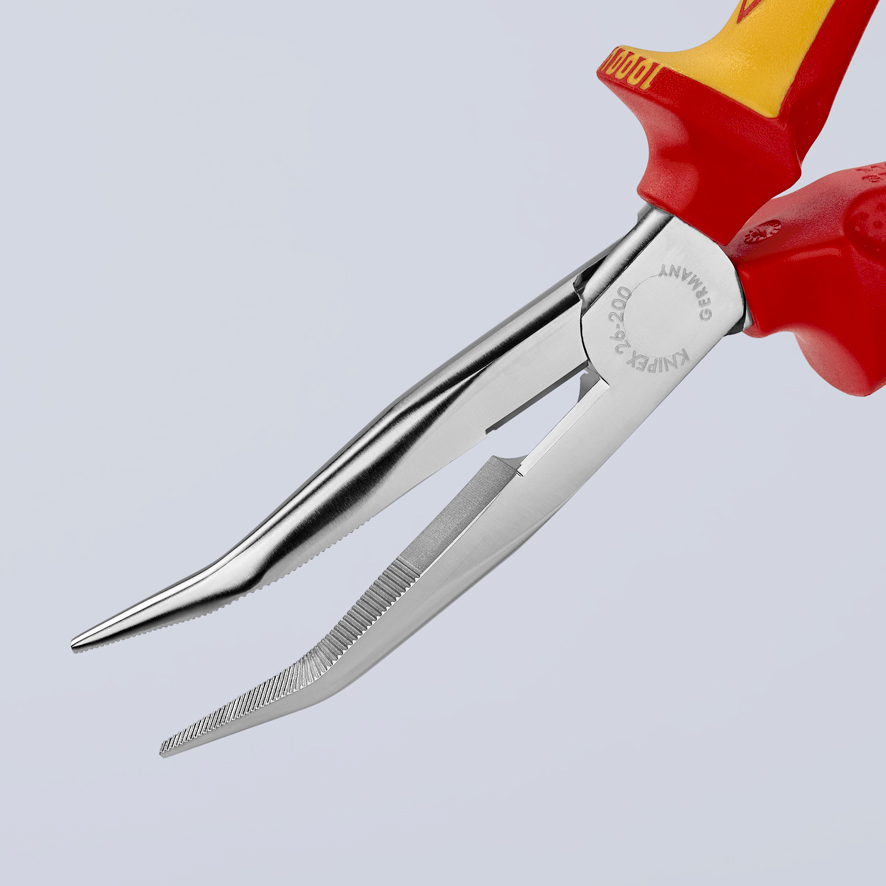

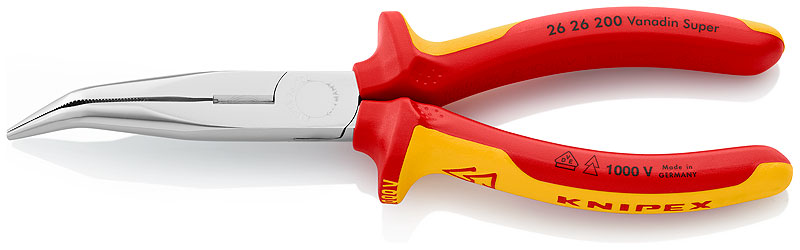

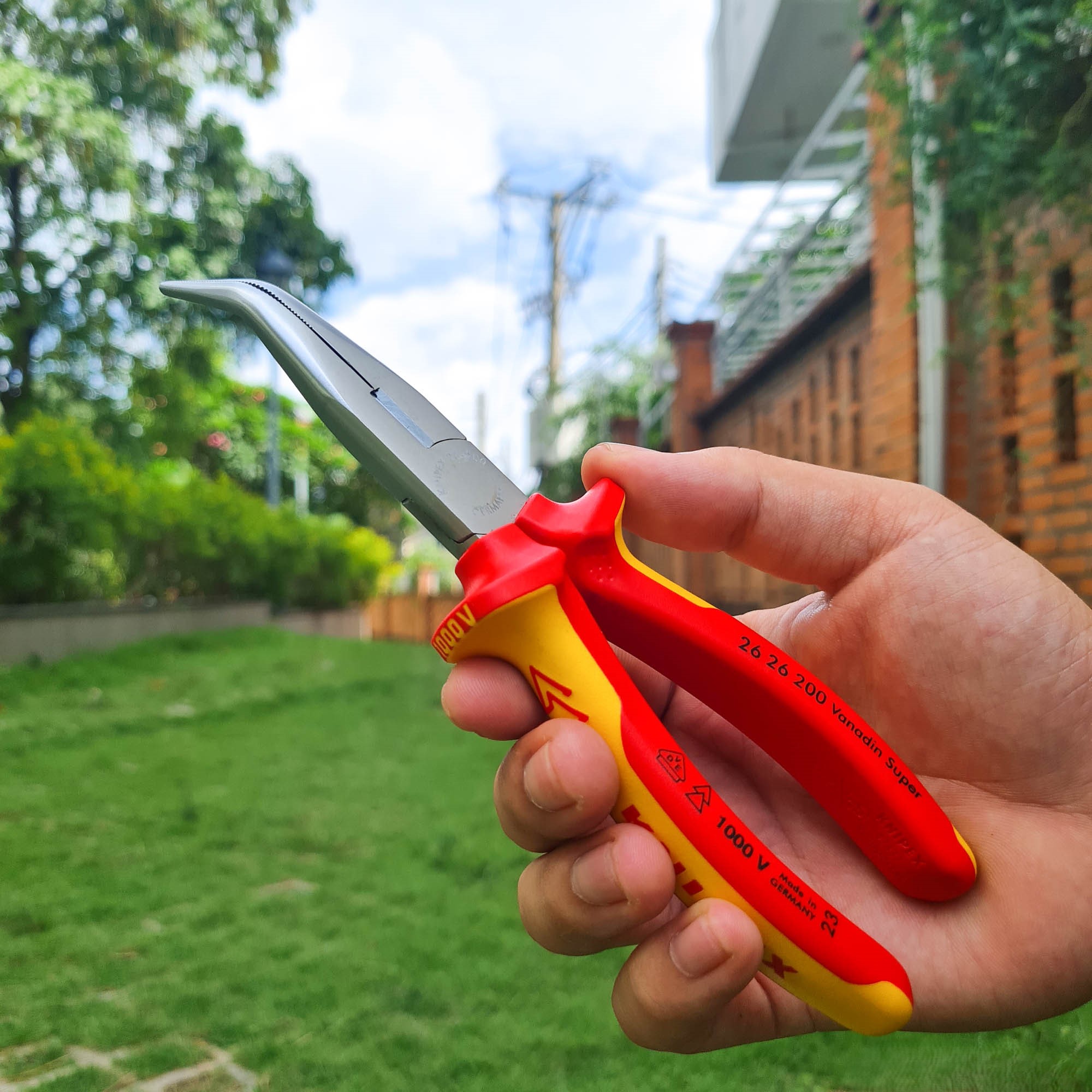

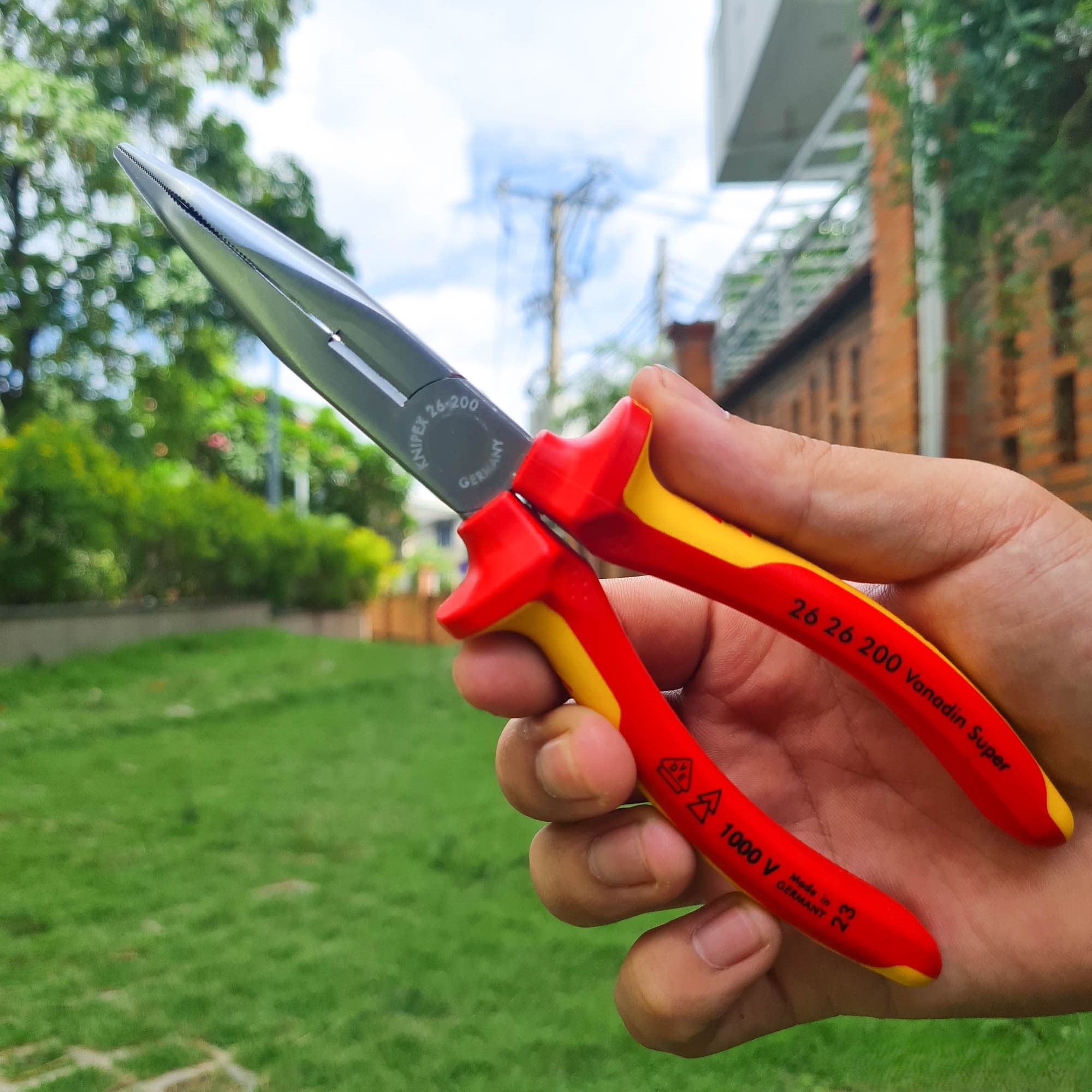

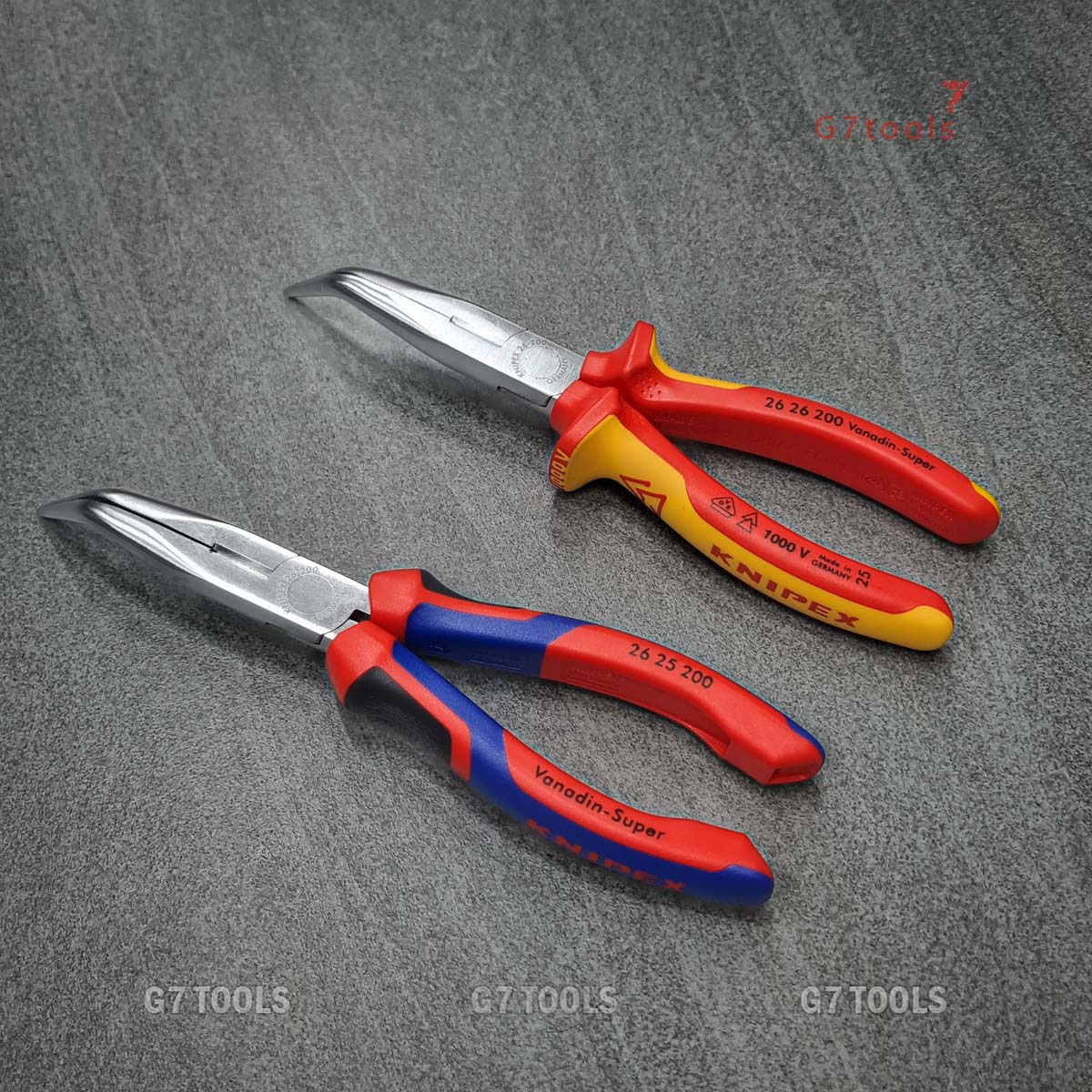

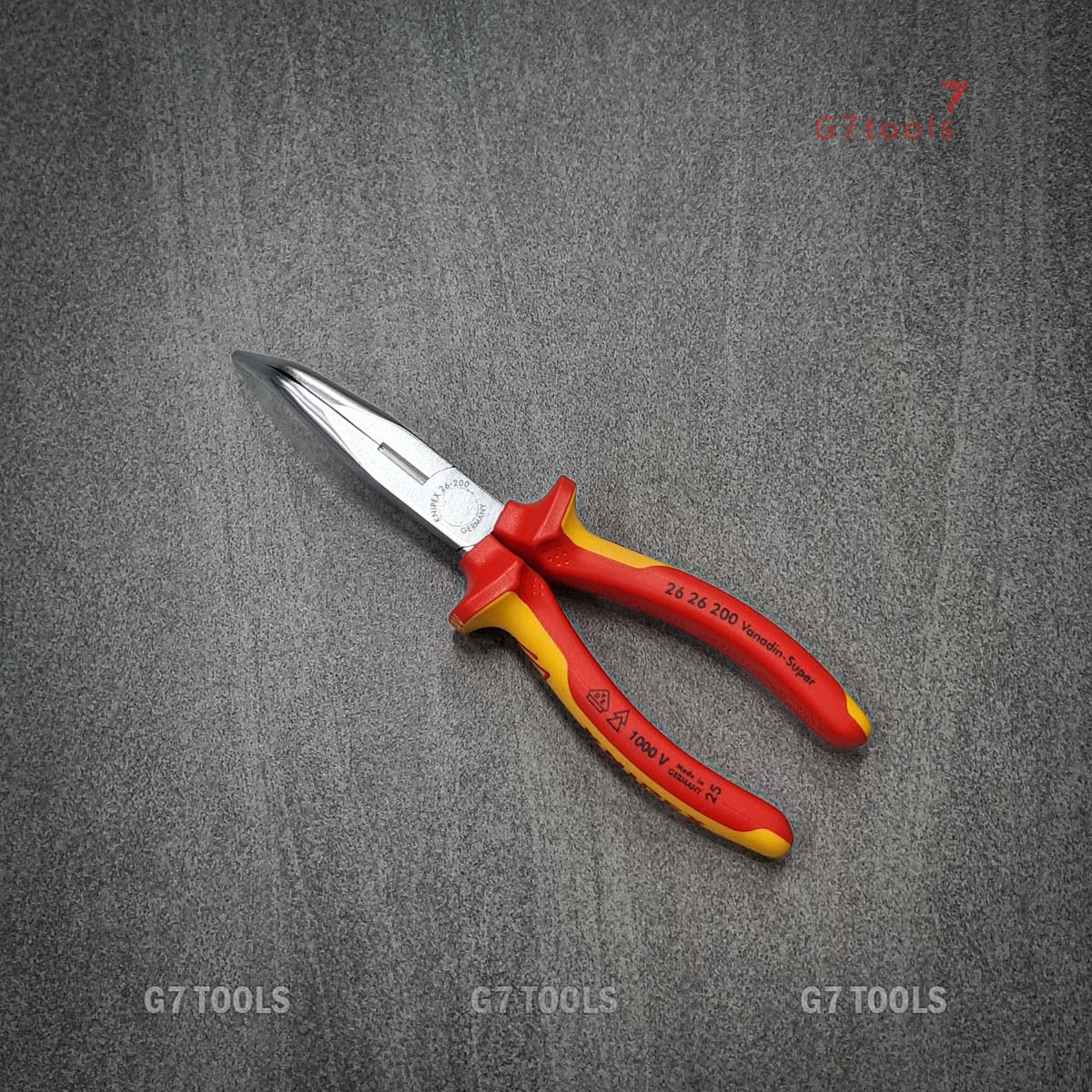

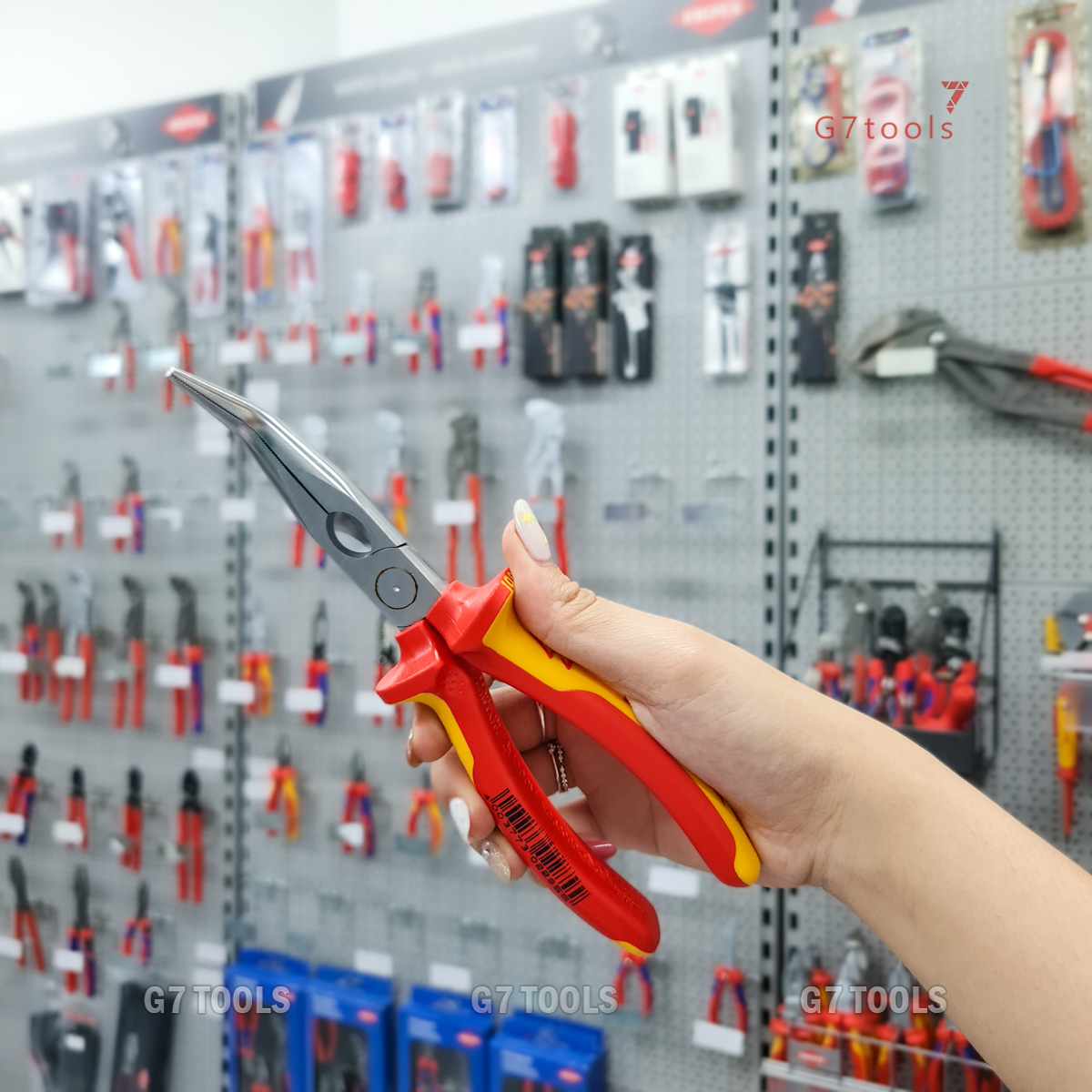

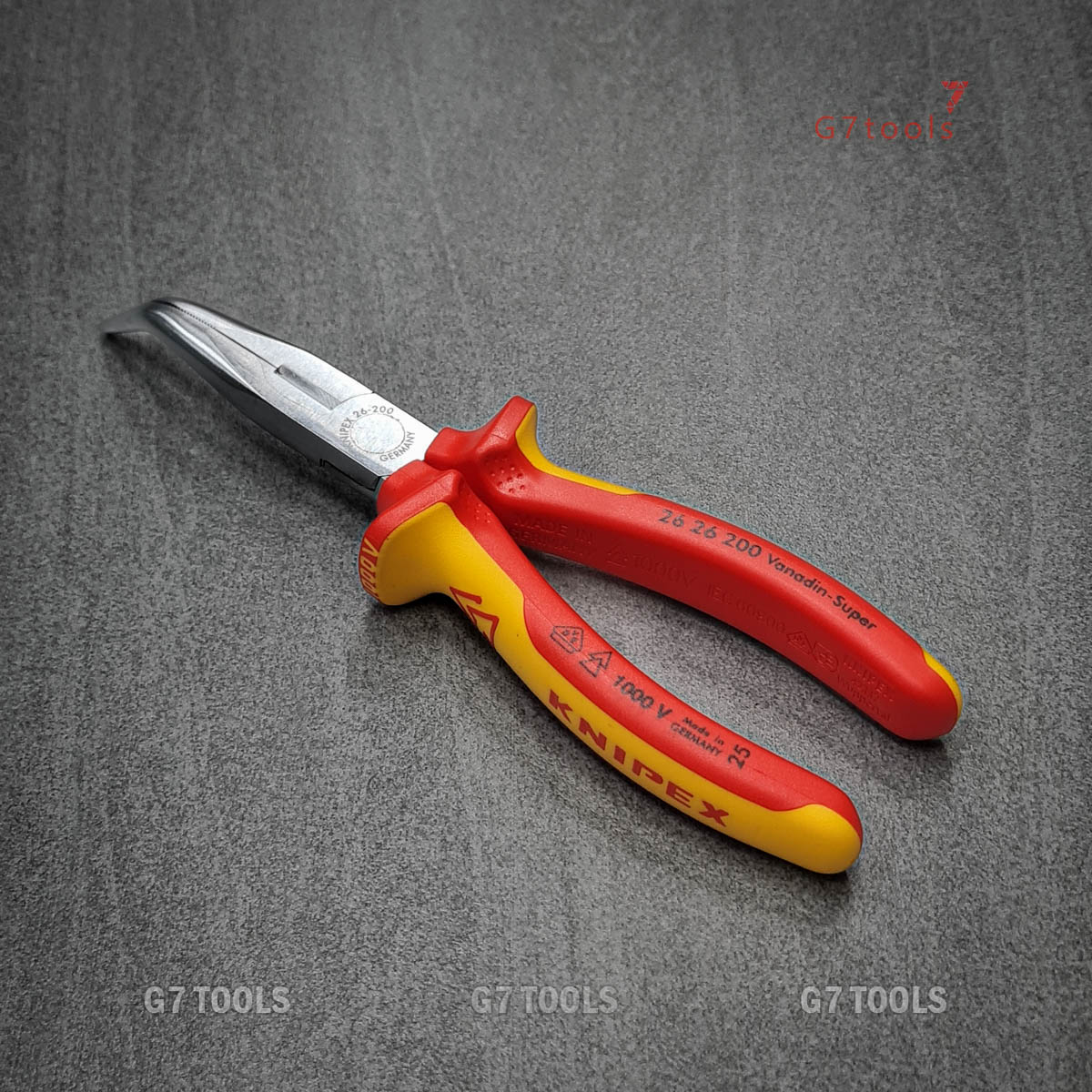

Kìm Nhọn Knipex 26 26 200 Mũi Cong 40° Chiều Dài 200mm Cách Điện 1000 volt

Snipe Nose Side Cutting Pliers Knipex 26 26 200

(Stork Beak Pliers)

• Elastic tips: dimensionally stable even when twisted

• Distortion-tolerant, elastic precision tips
• Half-round, long, tapered jaws
• With cutting edges for soft, medium-hard and hard wire
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 61 HRC

Technical Contribution:

• Head: chrome-plated
• Handles: insulated with multi-component grips, VDE-tested
• Weight: 204 g
• Dimensions: 200 x 56 x 19 mm
• Standard: DIN ISO 5745 DIN EN 60900 IEC 60900
• Cutting capacities medium hard wire (diameter): Ø 3.2 mm
• Schneidwerte harter Draht (Durchmesser): Ø 2.2 mm

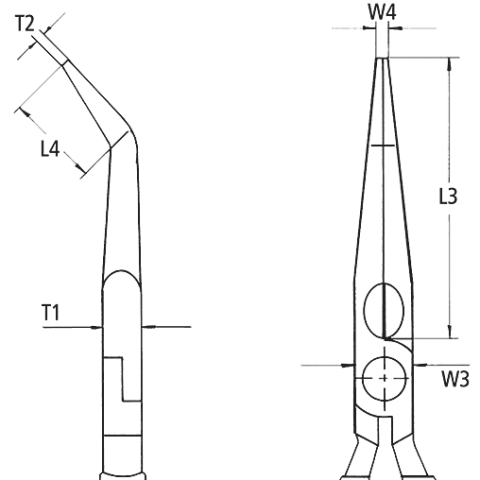

Dimension:

• Jaw thickness (joint) (T1): 9.5 mm
• Tips width (W4): 3.0 mm
• Tips thickness (T2): 2.5 mm
• Gripping surface length (L4): 23.0 mm
• Jaw length (L3): 73.0 mm
• Head width (W3): 18 mm
• VDE tested: yes

Brief overview

• Snipe-nose pliersfor assembly, adjustment & gripping electronics

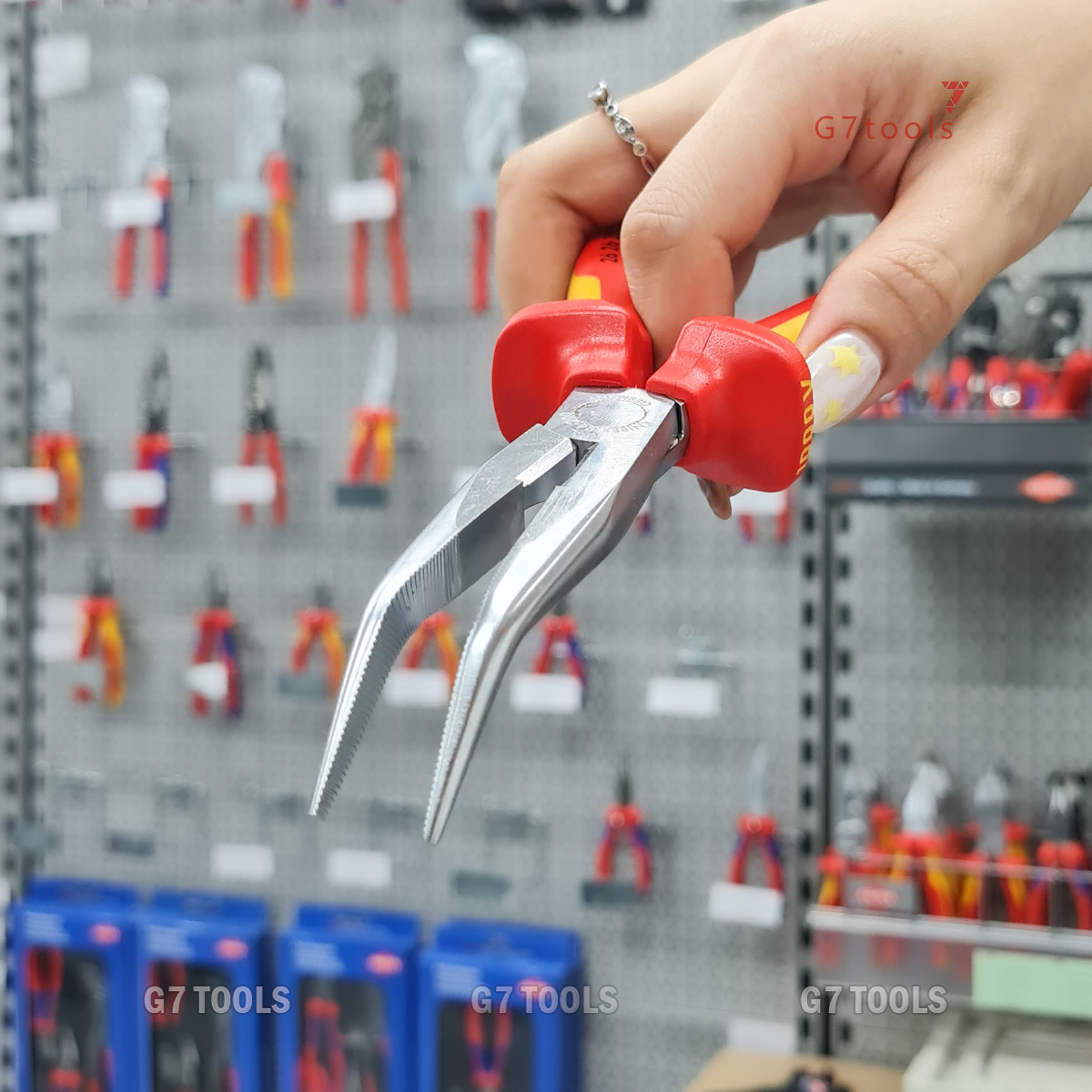

• Very long, narrow, half-round jaws, 40° angle at the tips
• End cutting; wire cutting values: medium-hard Ø3.2 mm, hard Ø2.2 mm
• Forged from vanadium electric steel, cutting edges hardened to approx. 61 HRC
• Chromed pliers
• Insulated, multi-component grips
• VDE tested
