Knipex 36 32 125 - Electronics Mounting Pliers
![mit Öffnungsfeder](https://web-assets.knipex.com/sites/default/files/pictograms/IM0004060.png)

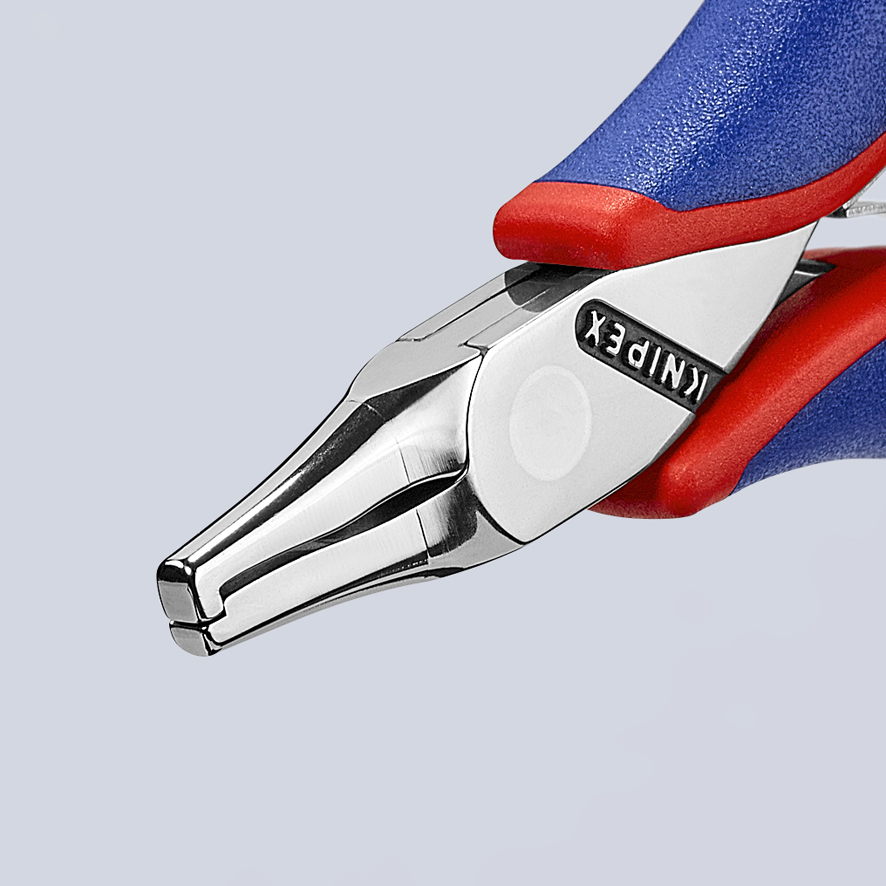

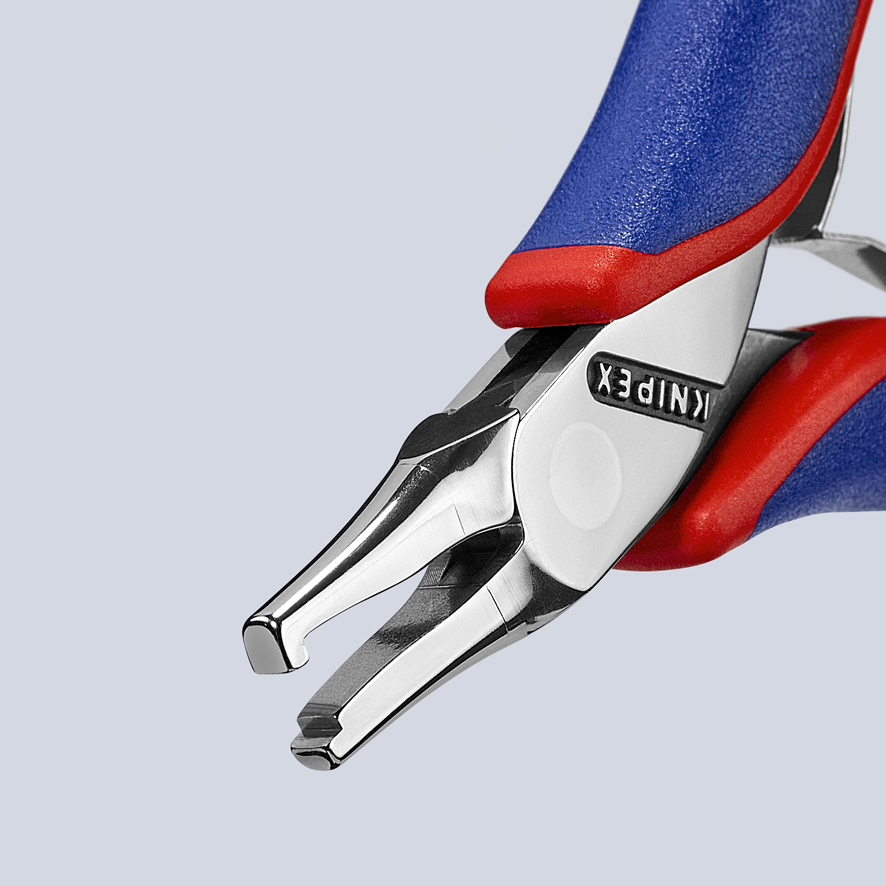

- Precision pliers for very fine assembly and repair work in electronics

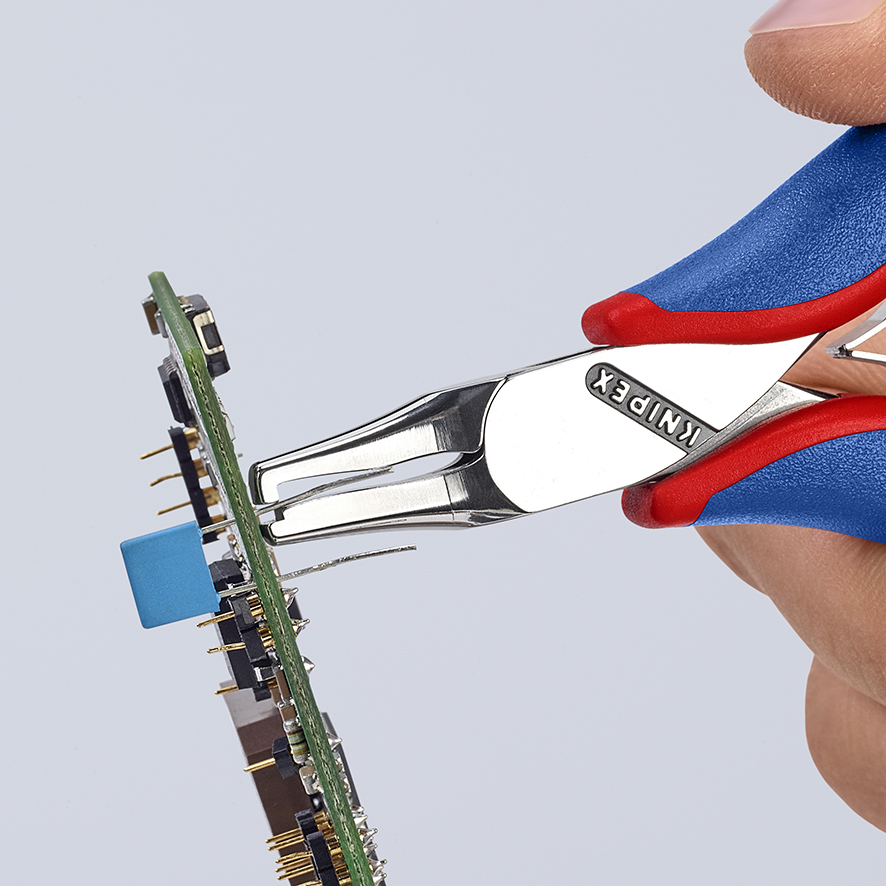

- For bending and cutting off wire ends on components
![](//bizweb.dktcdn.net/100/385/644/products/3632125-01-f-a-01.jpg?v=1713163783207)
- Sturdy, zero backlash box joint
- Smooth ground gripping surfaces
- Edges carefully deburred
![](//bizweb.dktcdn.net/100/385/644/products/3632125-01-f-a-01.jpg?v=1713163783207)
![](//bizweb.dktcdn.net/100/385/644/products/3632125-01-hl-a-01.jpg?v=1713163663137)
- Low-friction double spring for gentle and even opening
- The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools

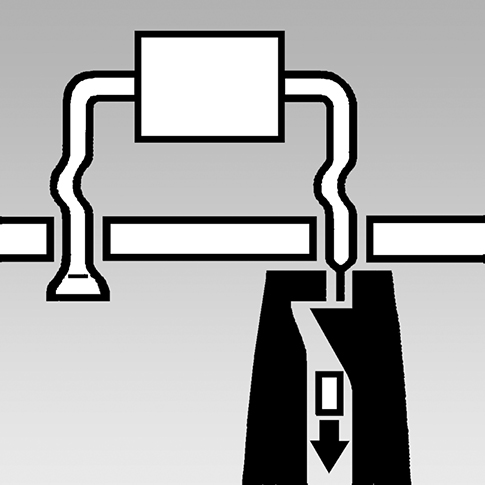

- To crunch and cut wire at 1.6 mm length below the board
![](//bizweb.dktcdn.net/100/385/644/files/3632h01d0.jpg?v=1713164747569)
Technical attributes
Cutting capacities soft wire (diameter) = Ø 1.0 mm
- Jaw thickness (joint) (T1) = 7.0 mm
- Tips thickness (W4) = 3.0 mm
- Head width (W3) = 11.0 mm
- Handle width = 7.5 mm
- Jaw length (L3) = 18.0 mm
Application
- Cut at 1.6 mm and crunch wire
Made in Germany
