Kìm Cắt Linh Kiện Knipex 79 22 125 Đầu Tròn Thon Lưỡi Cắt Bằng, Flush Cut

Kìm Cắt Linh Kiện Điện Tử, Cắt Vật Liệu Mềm Knipex 79 22 125

Chỉ dùng kìm để cắt các linh kiện nhỏ, mềm như dây đồng tinh và một số bo mạch

• Đầu Tròn
• Lưỡi cắt tôi cứng khoảng 62 HRC
• Dùng để cắt những chi tiết nhỏ hoặc linh kiện điện tử
• Cắt sát chân, không để lại gờ (Flush Cut)
• Lò xo hoạt động chậm, hạn chế va chậm các vật thể xunh quanh khi thao tác
• Thân kìm đánh bóng gương, tránh không gây bụi kim loại khi cắt hay thao tác trong môi trường sạch
• Chế tác bằng thép chrome vòng bi, rèn và tôi cứng bằng dầu
• Kích thước 125 x 60 x 19 mm

Khả Năng Cắt Knipex 79 22 125

Cặt những vật dụng nhỏ, KHÔNG cắt thép cứng như piano wire, inox...

• Dây mềm: Ø 0.1 – 1.7 mm (như đồng hoặc nhôm)
• Dây cứng trung bình: Ø 1.0mm (cứng hơn đồng, các loại bo mạch)

Bản Vẽ

• Ngàm (B) = 10 mm
• Độ Dày Mặt Kìm (joint) (D) = 6.5mm
• Đầu Kìm (A) = 11 mm

=================================

Electronics Diagonal Cutter 76 22 125

• Round head
• Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• Very precisely ground and sharp cutting edges with very small bevels for exact cutting on delicate electronic components; also available without bevel for flush cutting
• Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
• Approx. 20% lighter than conventional electronics pliers
• Bolted joint with carefully manufactured joint surfaces for even, low-friction movement throughout the entire opening range
• Smooth-running double spring for a gentle and even opening
• Ergonomically optimised multi-component handles
• Ball bearing chrome steel, forged, multi stage oil-hardened

Cutting capacities:

• soft wire (diameter): Ø 0.1 – 1.7 mm
• medium hard wire: Ø 1.0mm

Technical Dimension:

• Jaw length (B) = 10 mm
• Jaw thickness (joint) (D) = 6.5 mm
• Head width (A) = 11 mm

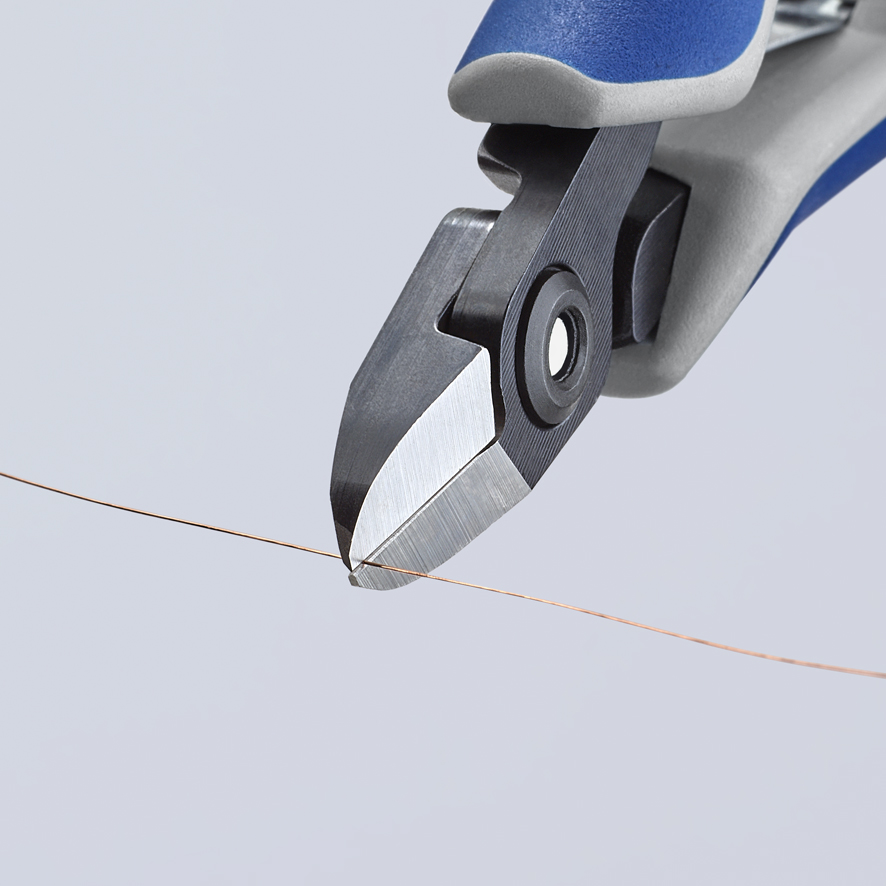

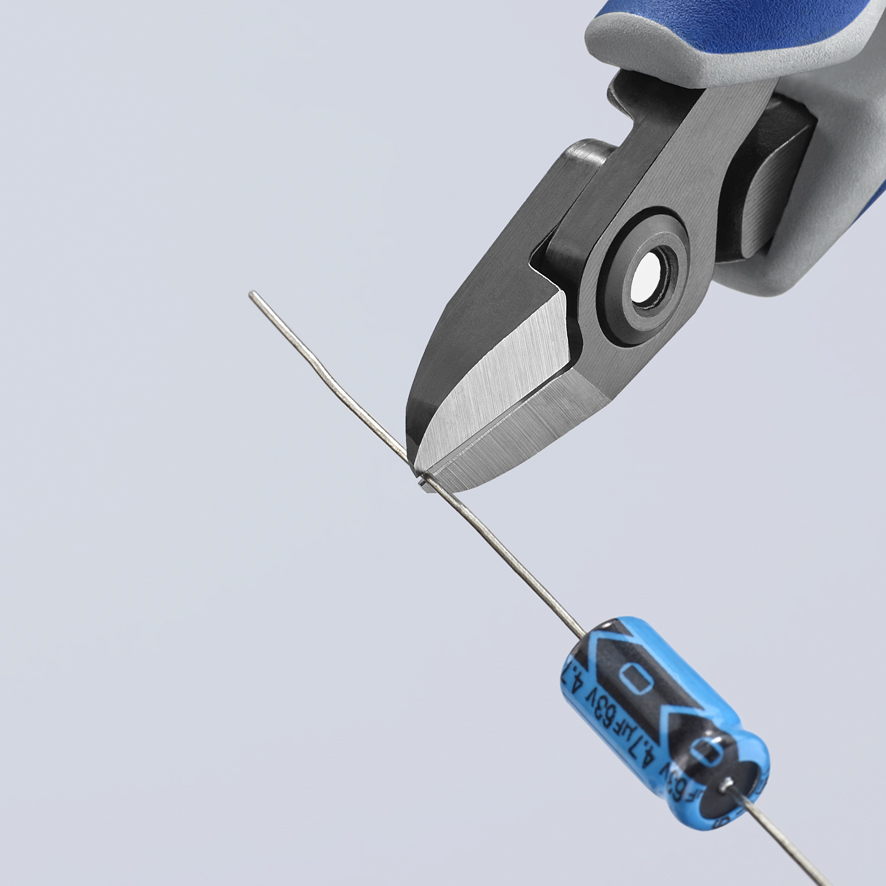

Precise cutting of finest wires – even flush cut

Compact dimensions – long-lasting large cutting capacity

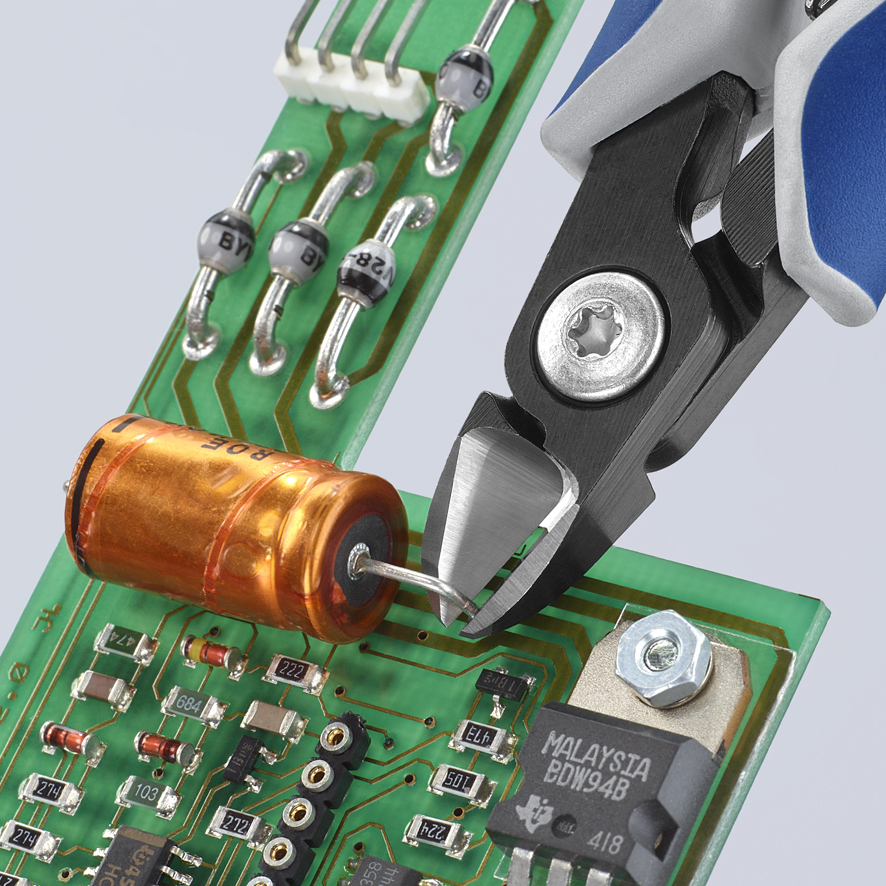

Precision electronics diagonal cutters from Knipex stand out from other electronics diagonal cutters due to their superior quality. They are precision tools for cutting even the finest wires with surgical precision. Being 125 mm long and weighing only 60 g, the Knipex 79 22 125 is particularly compact and around 20% lighter than other electronics diagonal cutters: ideal for being carried around and for delicate work, e.g. solder contacts of electronic components. The edge hardness of approx. 64 HRC lets the Knipex 79 22 125 cut soft wire up to Ø1.7 mm and medium-hard wire up to Ø1.0 mm. Impressive figures for such compact pliers. The ratio of handle length to pliers head size yields strong leverage. The non-bevelled design means that flush cutting is possible. Due to its design, the Knipex 79 22 125 is unsuitable for hard wire.

Bolted joint. High cut quality and durability

The bolted joint of the Knipex 79 22 125 precision electronics diagonal cutter enables high-quality cutting operations, as the cutting edges lock up and engage perfectly. The joint surfaces are carefully machined for easy operation. This leads to smooth and gentle opening after the cutting process, supported by a low-friction double spring.

High Knipex quality standards

This high-grade workmanship meets the requirements for electronics and micromechanics. Precise guidance of the lever, low-friction and extremely sharp cutting edges ensure good results with Knipex precision electronics diagonal cutter 79 22 125. Forged from ball bearing steel with a black finish, the cutting surfaces are finely ground.

Made in Germany
