Kìm Cắt Linh Kiện Điện Tử Knipex 77 01 115
![Schneide mit kleiner Facette](https://www.knipex.com/sites/default/files/IM0003980.jpg)

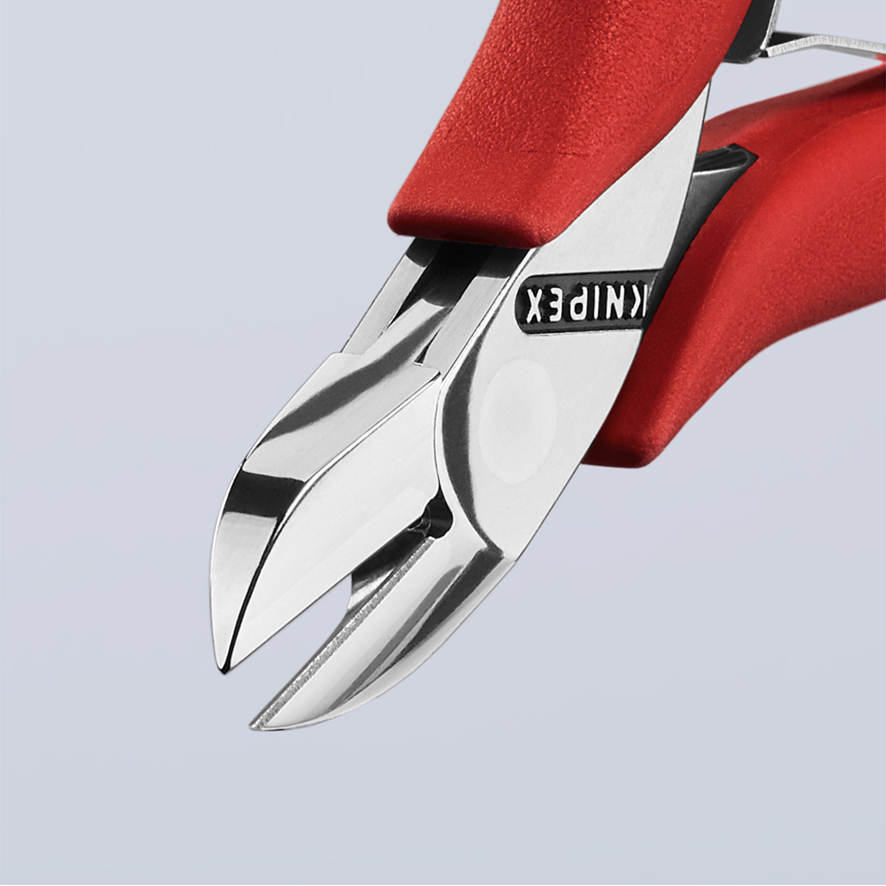

- Lưỡi cắt tôi cứng khoảng 60-62 HRC
- Lưỡi cắt để lại cạnh nhỏ (hình ảnh màu vàng bên trên)
- Dùng để cắt những chi tiết nhỏ hoặc linh kiện điện tử
- Mũi kìm thiết kế hẹp
- Lò xo hoạt động chậm, hạn chế va chậm các vật thể xunh quanh khi thao tác
- Thân kìm đánh bóng gương, tránh không gây bụi kim loại khi cắt hay thao tác trong môi trường sạch
- Chế tác bằng thép chrome vòng bi, tôi cứng bằng dầu
![](//bizweb.dktcdn.net/100/385/644/products/7701115-02-f-a-01.jpg?v=1657856735243)

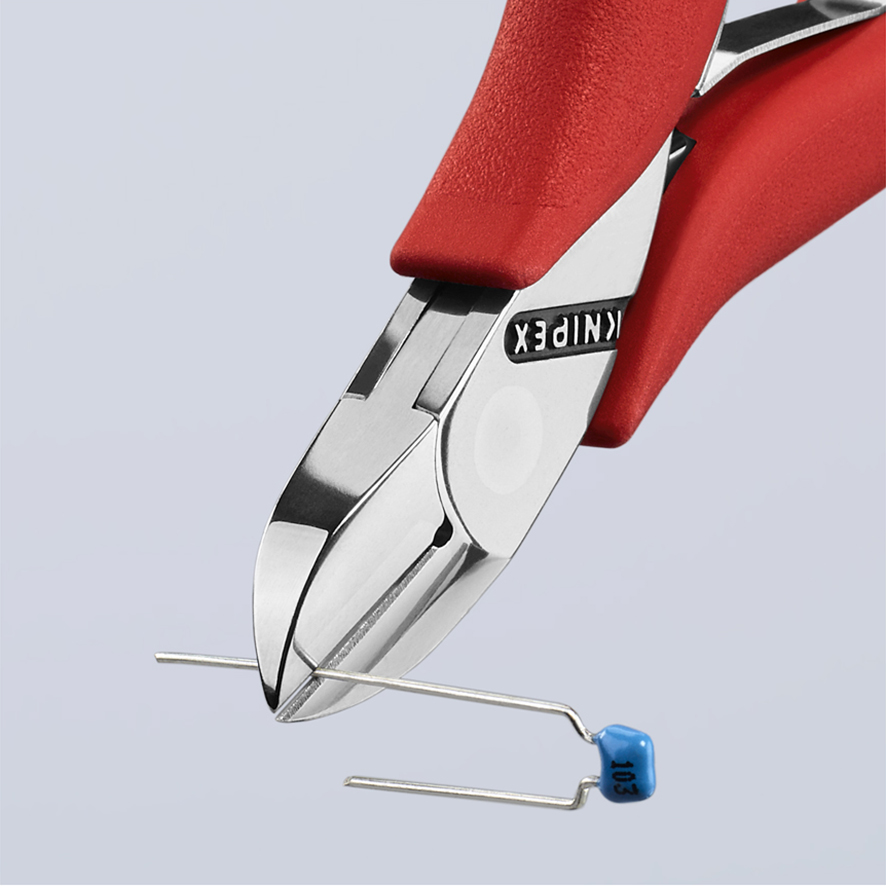

Khả Năng Cắt Knipex 77 01 115
Cặt những vật dụng nhỏ, không cắt thép quá cứng như piano wire, inox...
- Thép cứng trung bình: Ø 1.2 mm
- Thép cứng: Ø 0.6 mm
- Dây mềm: Ø 0.3 – 1.6 mm (như đồng hoặc nhôm)
![](//bizweb.dktcdn.net/100/385/644/products/7701115-02-hl-a-01.jpg?v=1657856735243)
Bản Vẽ
- Ngàm (B) = 14 mm
- Độ Dày Mặt Kìm (joint) (D) = 7.5 mm
- Đầu Kìm (A) = 11 mm
![](//bizweb.dktcdn.net/100/385/644/products/7701115.jpg?v=1657856735243)
=================================

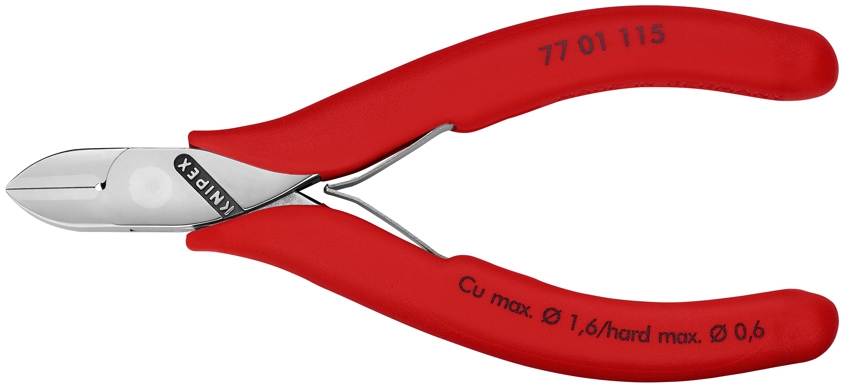

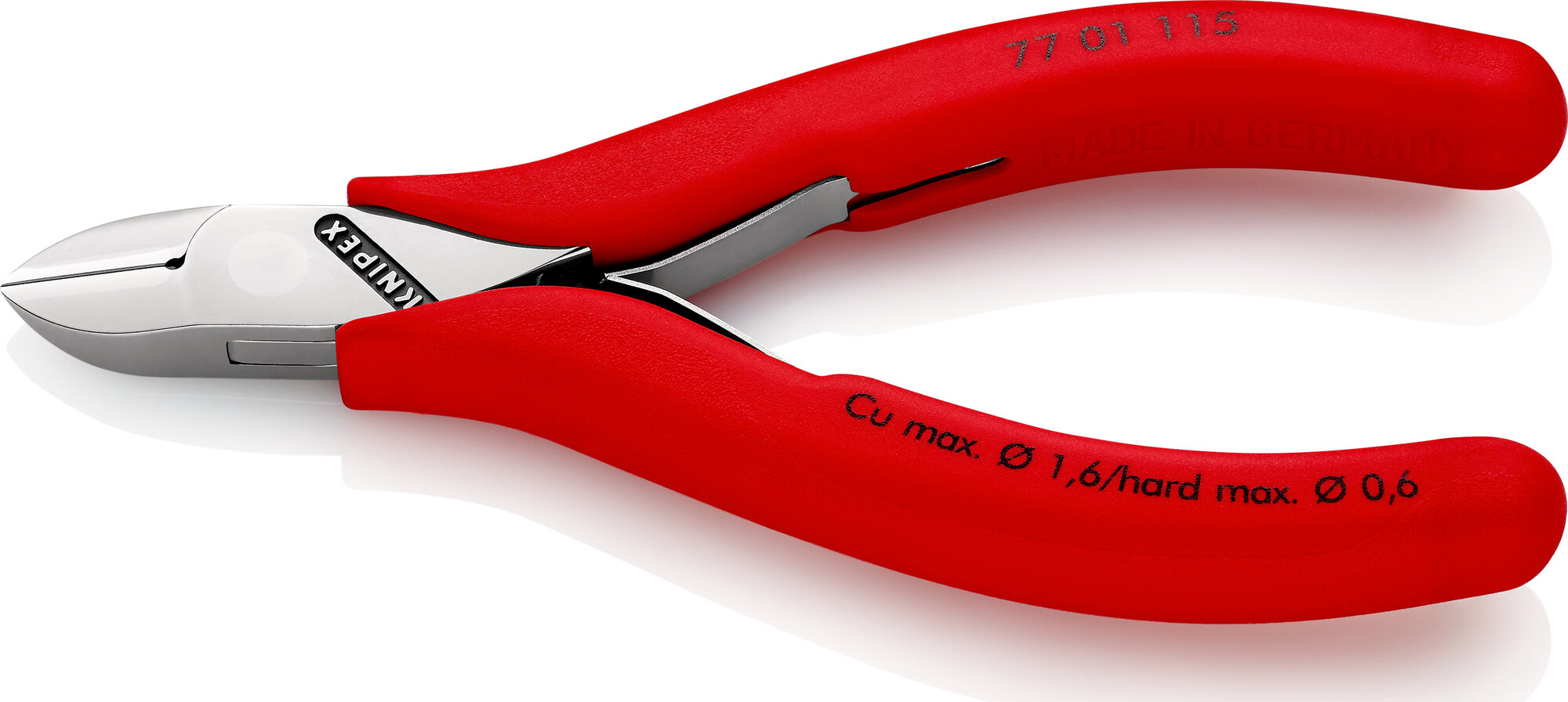

Electronics Diagonal Cutter 77 01 115
![Schneide mit kleiner Facette](https://www.knipex.com/sites/default/files/IM0003980.jpg)
- Round head, with bevel
- Cutting edge hardness approx. 62 HRC
- For fine cutting work, e.g. in electronics and fine mechanics
- Load-optimised for a more direct feel when working
- Low-friction double spring for gentle and even opening
- The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutters additionally laser hardened, cutter hardness at least 60 HRC
- Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger
- Ball bearing chrome steel, oil hardened
Cutting capacities:
- medium hard wire (diameter): Ø 1.2 mm
- hard wire (diameter): Ø 0.6 mm
- soft wire (diameter): Ø 0.3 – 1.6 mm
Technical Dimension:
- Jaw length (B) = 14 mm
- Jaw thickness (joint) (D) = 7.5 mm
- Head width (A) = 11 mm
![](//bizweb.dktcdn.net/100/385/644/products/7701115-02-3.jpg?v=1657856735243)
Made in Germany
